BMW Airhead Battery Tray

BMW Airhead Battery Tray

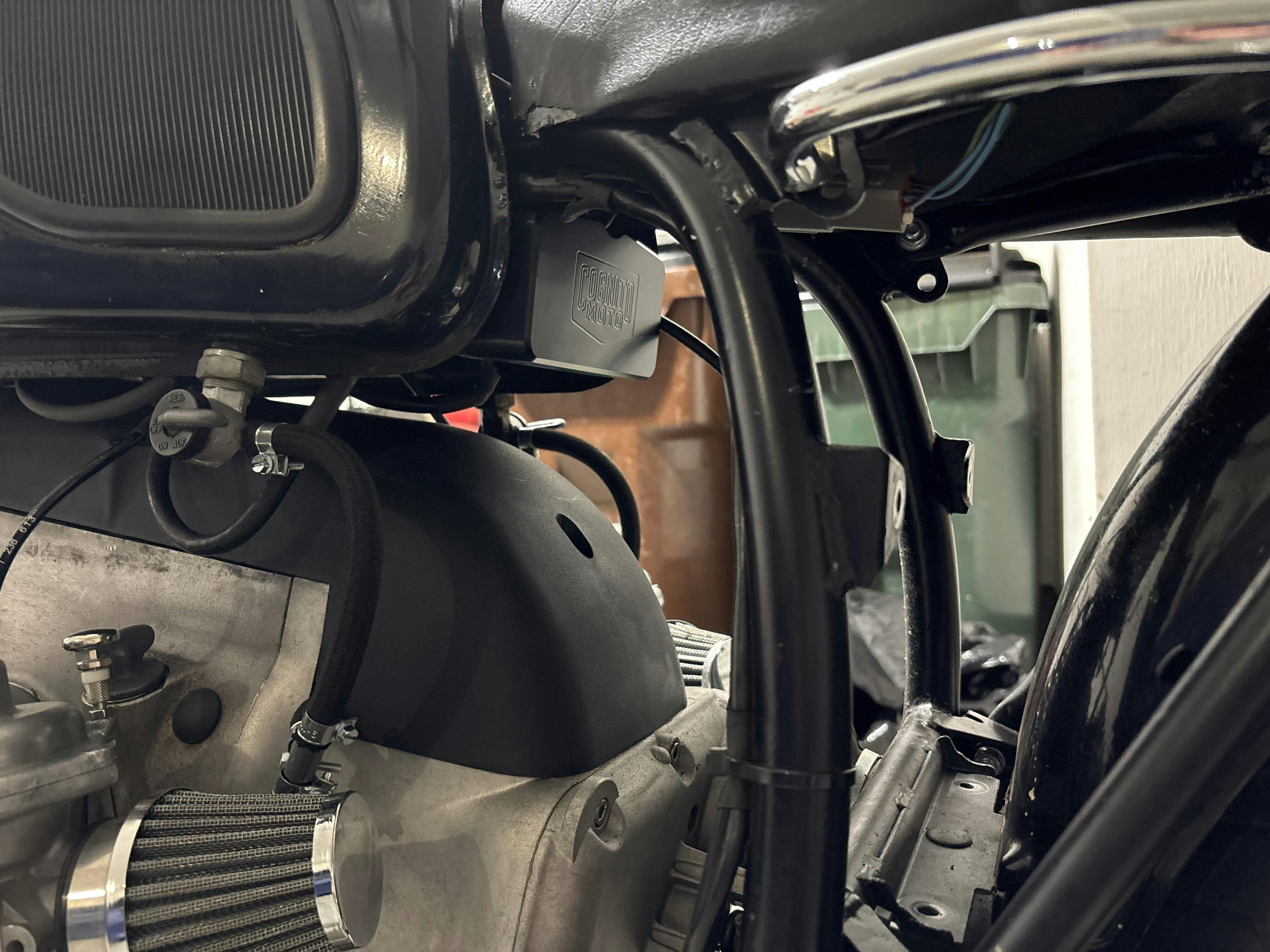

Designed specifically for BMW Airhead models, this tray is built to accommodate small Shorai batteries and other compact battery options. The pocket dimensions are 2.38" tall x 4-1/4" to 4-1/2" wide ( 60.45 mm tall x 107.95 mm to 114.3 mm wide ), providing a secure fit. It mounts directly under the fuel tank, above the stock airbox, and is secured with a single bolt using the existing hole at the end of the frame spine tube.

Compatible Shorai Batteries

The following Shorai batteries are confirmed to fit:

• LFM07L2-BS12

  • Polarity: "L"
  • Case Type: 2
  • Dimensions: 4.45" (L) x 2.28" (W) x 3.50" (H)

• LFM09A2-BS12

  • Polarity: "A"
  • Case Type: 2
  • Dimensions: 4.45" (L) x 2.28" (W) x 3.50" (H)

• LFM09L2-BS12

  • Polarity: "L"
  • Case Type: 2
  • Dimensions: 4.45" (L) x 2.28" (W) x 3.50" (H)

• LFM09L2-LC12

  • Polarity: "L"
  • Case Type: 2
  • Dimensions: 4.45" (L) x 2.28" (W) x 3.50" (H)

• LFM14A2-BS12

  • Polarity: "A"
  • Case Type: 2
  • Dimensions: 4.45" (L) x 2.28" (W) x 3.50" (H)

• LFM14L2-BS12

  • Polarity: "L"
  • Case Type: 2
  • Dimensions: 4.45" (L) x 2.28" (W) x 3.50" (H)

Material

The tray is crafted from billet aluminum, offering a durable and lightweight solution for securing your battery.
