mo.switch basic LED 3 button, black, for 7/8" and 1" Bars

Mo.Switch Basic LED

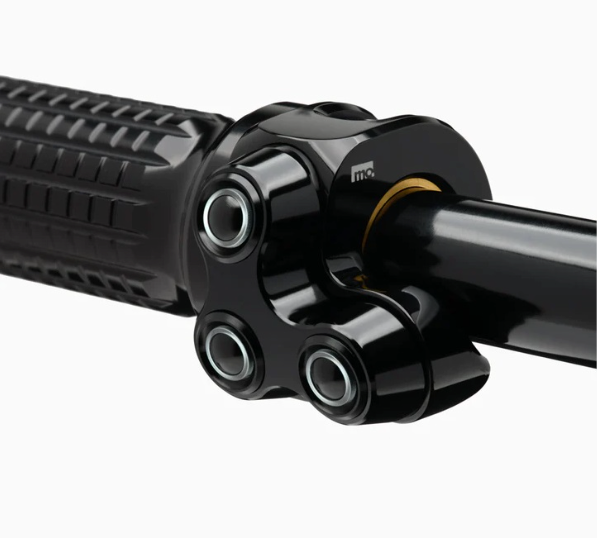

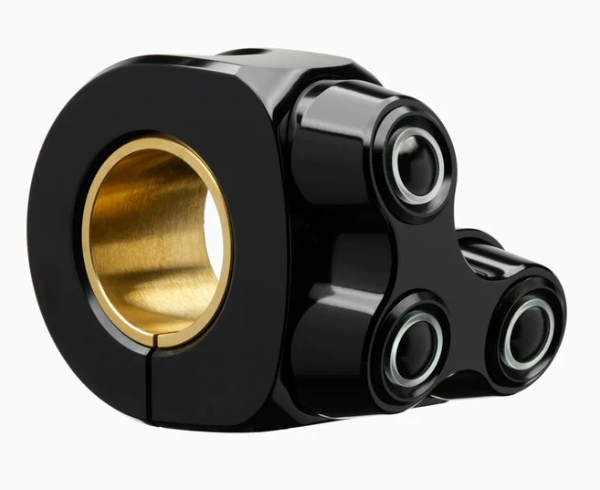

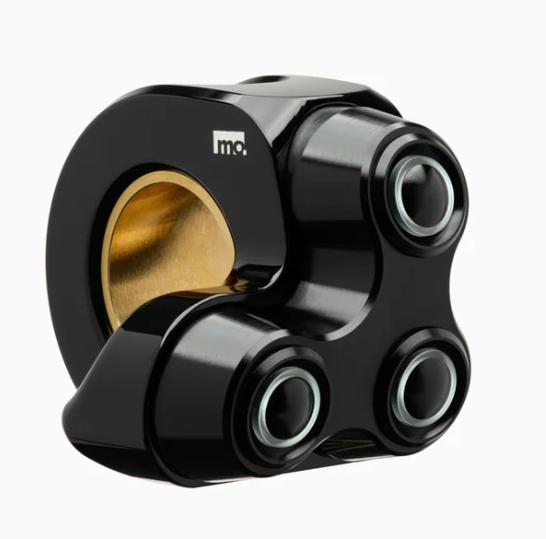

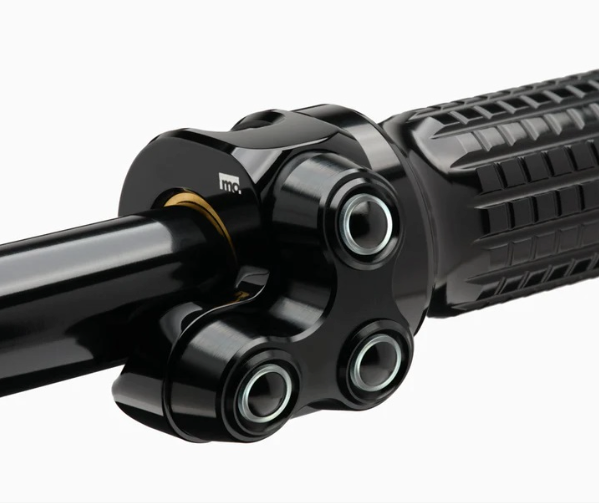

The mo.switch basic LED is a universal, high-quality pushbutton fitting for handlebars with 1 inch or 22 mm (7/8 inch) tube diameter in a simple, elegant design. In conjunction with an electronic pushbutton control (not included), these CNC-manufactured pushbutton fittings can switch all electrical units such as lights, turn signals, e-starters, horns and much more.

CNC machined from billet aluminum, the housing is anodized in gloss black.

The individual pushbuttons are of high quality, very robust and protected against vibration and splash water (IP65).

Due to sufficient size and ergonomic pressure point (light, mechanical detent), they enable a safe switching feeling during operation - even when operated with a glove.

Due to two connections per pushbutton, a one-wire or two-wire circuit is easily possible. A connection for ground is already provided internally for the one-wire circuit. A cable routing in the handlebar is therefore easy to perform.

In case of possible damage, the probes are available individually and are replaceable.

Parts Included

mo.switch basic aluminium housing
3 push-buttons per unit
QR Code for mounting instructions

Specifications And Features

- Inner diameter: 22 mm and 1 inch
- Outer diameter housing: approx. 45 mm
- Width: 2 styli 22 mm, 3 styli 42.5 mm
- Pushbutton completely wired
- High quality connection cable with 1,8m length
- LED illuminated buttons
- High quality CNC milled from solid material and anodized UV resistant
- Housing color black, button black, button LED color white
- Maximum pushbutton switching current: 1A, all pushbuttons switch to ground
- Additional switching electronics mo.unit required
